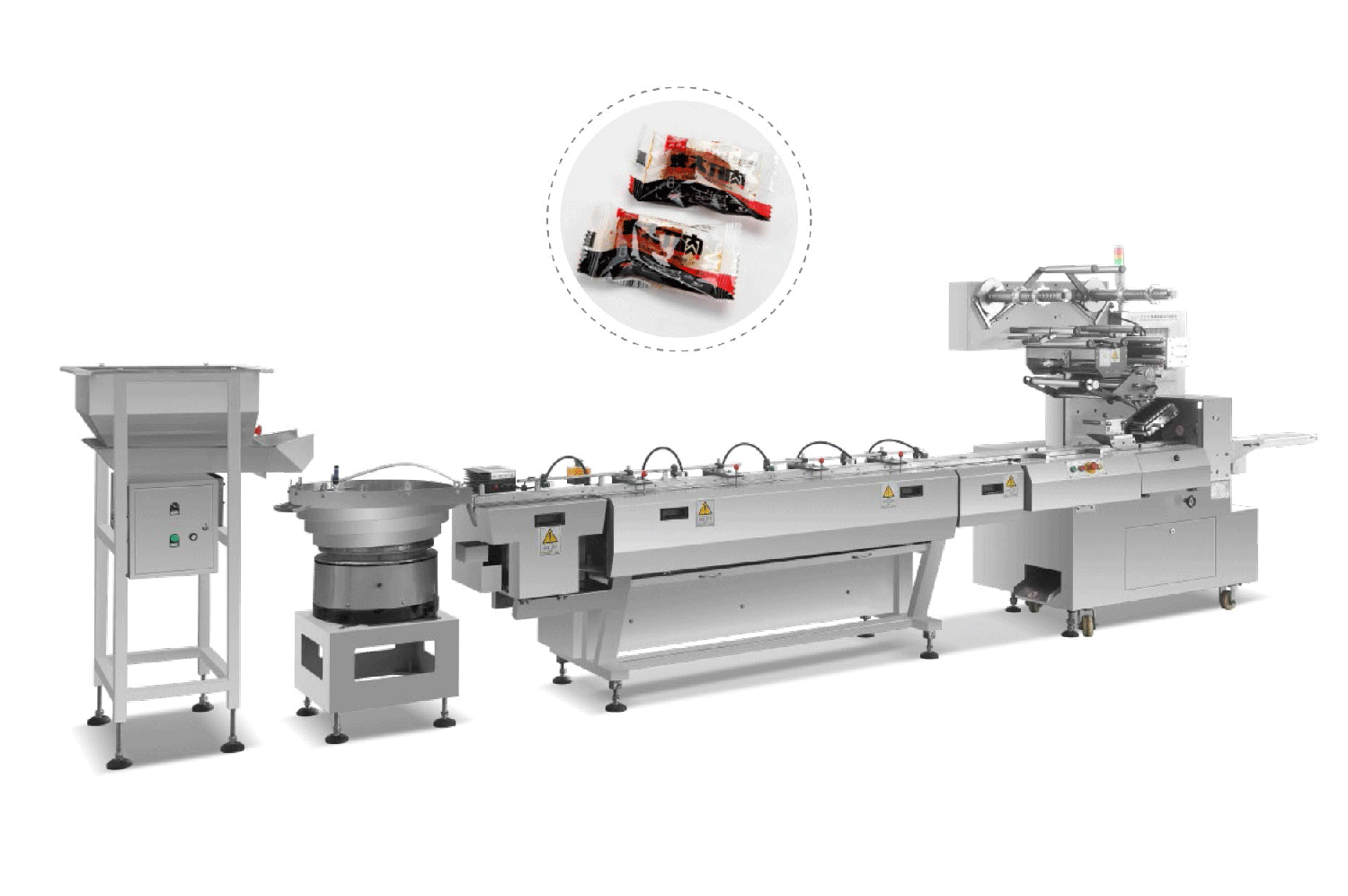

DXD-300 Automatic Viberator Feeding Packaging Line
details
USE用途
It is used for packing round bar products，oblate products，hemispherical products etc.
用于包裝長圓柱形、扁圓形、長扁圓形、半球形等物品。
MAIN TECHNICAL PARAMETERS主要技術參數
DXD-300振動盤式
Max.Production Capacity Max Width of Film | 上限生產能力 上限包裝膜寬度 | 500 bag/min（根據物料尺寸不同，而有所改變） 300mm | |||||||
Max.Dia of Film Shape of products | 上限包裝膜卷筒直徑 包裝物形狀 | 380mm 長圓柱形Round bars，oblate，hemispherical products | |||||||
Packing Range/ Length of bag Dia | 包裝范圍/ 袋長 高度 | 60-200mm 8-30mm | |||||||
Packing Material | 包裝材料 | 可熱封復合膜 Hot Sealing Film | |||||||
Gross Power Power Supply | 總功率 電源 | 6kW 3P/380V/50Hz | |||||||
Overall Dimension Gross Weight | 外形尺寸 總重量 | 4800×1150×1580mm 1300kg | |||||||
Note: We can design and manufacture according to customer's special needs. 注：用戶如有特殊規格，本公司可另行設計制造.
